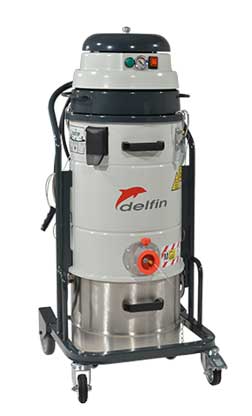

202DS BL Z22 - II 3D Atex zone 22 certified industrial vacuum cleaner

In the single-phase version, the 202DS vacuum cleaner is equipped with a powerful, maintenance-free brushless motor, which generates high vacuum levels and guarantees a long service life. In the three-phase version, a powerful side channel blower makes continuous duty vacuuming possible, without any loss in performance.

Advantages

  • Side channel blower motor , powerful and silent, totally maintenance free, suitable for continuous duty
  • Integrated filter cleaning system
  • Complete steel construction
  • Extractable collection container with optional use of disposable bags
  • Compact and mobile
  • Easy filter replacement
  • Atex certified for Zone 22
  • Stainless steel AISI304 collection tank
  • Earth grounding
  • Easy to clean and to maintain
  • ATEX-certified Z22
  • Motor with very long service life
  • Maximum safety thanks to the three levels of air filtration
  • Dustop filter cleaning system

Datasheet

  • 202BL
  • 202 DS Z22 T
IndexUnit202BL
Atex zones22
MarkingEX II 3D T135°C
VoltageV – Hz230 – 50 1~
PowerkW1,1
Max waterliftmmH2O2250
Max air flowm³/h215
Suction inletmm50
Noise level (EN ISO 3744)dB(A)74
Motor cooling filterCAT2x E10
Air exhaust filterCATE10
Filter TypeCartridge
Surface – Diametercm²-mm30.000-360
Material – EfficiencyIEC 60335-2-69Polyester – ANT M
Cleaning systemDustop
Capacitylt.20
Dimensionscm45x57x108
Weightkg35
IndexUnit202 DS Z22 T
Atex zones22
Marking3D
VoltageV – Hz400-50 3~
PowerkW1.8
Electrical protectionIP55
Max waterliftmmH2O2300
Max air flowm³/h250
Suction inletmm50
Noise level (EN ISO 3744)dB(A)70
Filter TypeCartridge
Surface – Diametercm²-mm30.000-360
Material – EfficiencyIEC 60335-2-69Polyester – ANT M
Cleaning systemDustop
Capacitylt.20
Dimensionscm50x48x120h
Weightkg64
