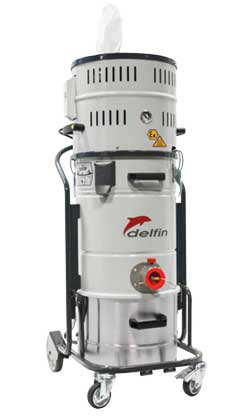

202DS Z20/22 - II 1/3D Atex certified industrial vacuum cleaner for internal zone 20 and external zone 22

Vacuuming potentially explosive dusts in zone 22 hazardous areas can create an even more perilous situation inside the industrial vacuum cleaner, where the extracted dust is moved and collected. Zone 20 certification of the interior of the vacuum chamber eliminates this risk.

Advantages

  • Side channel blower motor , powerful and silent, totally maintenance free, suitable for continuous duty
  • Largest surface filter in its category
  • Integrated filter cleaning system
  • Extractable collection container with optional use of disposable bags
  • Vacuum gauge to detect filter clogging
  • Conceived for fine and hazardous dust suction
  • Additional HEPA filter (99,995% on 0,18 micron) included
  • Stainless steel AISI304 collection tank
  • Earth grounding
  • ATEX certified for Zone 20 inside the chamber and for Zone 22 outside the chamber

Datasheet

  • 202 DS ECO M-T Z20/Z22
Index Unit 202 DS ECO M-T Z20/Z22
Atex zones 20 Ins – 22 Out
Marking II 1/3D lllB T135°C X IP65 Da/Dc
Voltage V – Hz 230/400 – 50
Power kW 2,2
Electrical protection IP 65
Max waterlift mmH2O 1800
Max air flow m³/h 250
Suction inlet mm 50
Filter Type Cartridge
Surface – Diameter cm²-mm 30.000-360
Material – Efficiency IEC 60335-2-69 Polyester – ANT M
Cleaning system Dustop
Capacity lt. 20
Dimensions cm 52X48X120h
Weight kg 64
