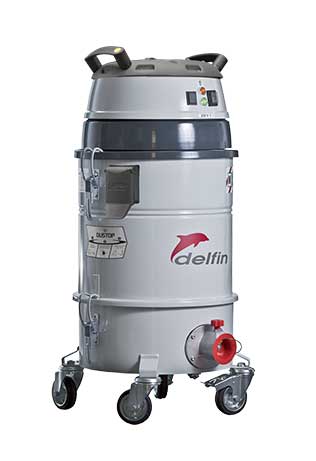

Sturdy and easy to transport, TORCH industrial vacuum cleaner has been conceived to remove possible welding fumes from the source, by keeping fine dusts concentration to the extent permitted by law.
The suction of welding fumes in a mechanical workshop contributes to a healthier work environment, especially if directly at the source.
The suction at the source is the best way to collect and vacuum welding fumes and so to safeguard welder's health.

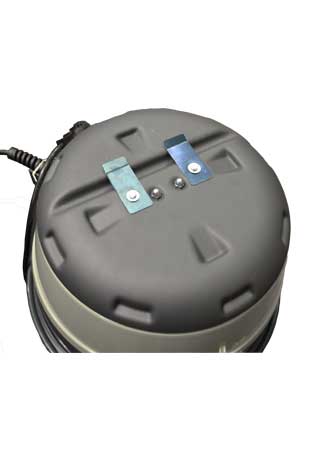

Torch 301 has a start and stop device which allows to power on/to stop the machine without the intervention of the welder, who will be free to only focus on using the welding torch.
| Index | Unit | 301 TORCH |
|---|---|---|
| Voltage | V – Hz | 230 – 50 |
| Power | kW | 1,15 |
| Max waterlift | mmH2O | 2.500 |
| Max air flow | m³/h | 180 |
| Suction inlet | mm | 50 |
| Noise level (EN ISO 3744) | dB(A) | 74 |

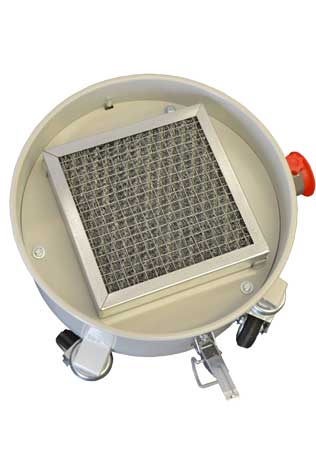

| Prefilter | Spark trap filter | |

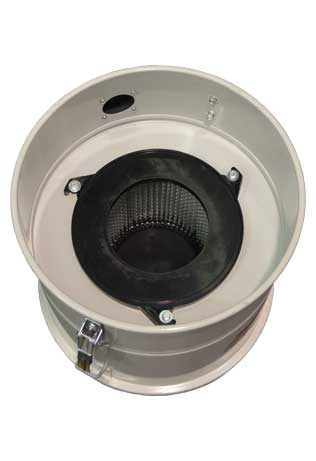

| Filter Type | Cartridge | |
| Surface – Diameter | cm²-mm | 7.500 – 245 |
| Material – Efficiency | IEC 60335-2-69 | Polyester – M |
| Cleaning system | Dustop | |
| Discharge system | Roll-out container | |
| Capacity | lt. | 13 |
| Dimensions | cm | 40x50x86h |
| Weight | kg | 25 |
