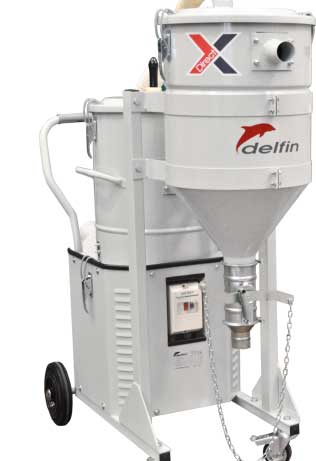

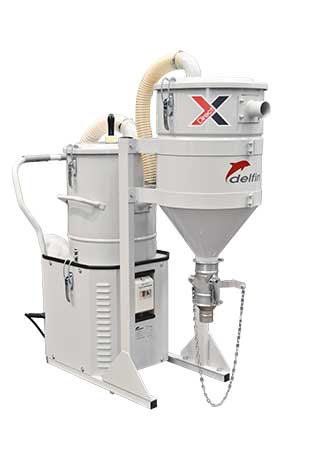

AF Flux recovery unit for submerged arc welding systems

Flux recovery units are the ideal tool for recycling flux used in submerged arc welding operations.

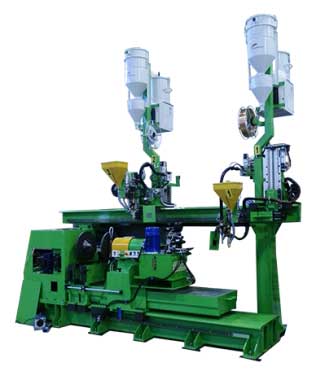

Made up of two units, an aspirator and hopper, it is fully configurable and adjustable according to needs. The units, which are built entirely out of steel, can be installed on the submerged arc welding system separately or together. They can be mounted on wheels to make them easy to transport.

Advantages

  • Side channel blower motor , powerful and silent, totally maintenance free, suitable for continuous duty
  • Largest surface filter in its category
  • Complete steel construction
  • Low noise level
  • Conceived for welding flux suction
  • Modularity is guaranteed to fulfil the client’s needs
  • Flux recovery vacuum for arc welding machines

Datasheet

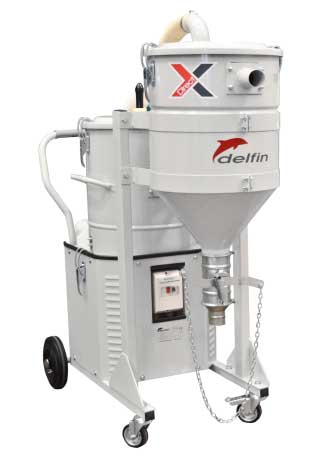

  • AF 20 MOBILE
  • AF 30 MOBILE
IndexUnitAF 20 MOBILE
VoltageV – Hz400 – 50
PowerkW1,8
Max waterliftmmH2O2300
Max air flowm³/h250
Suction inletmm50
Butterfly discharge valvemm80
Hoppermm360 – 450
Filter TypeStar
Surface – Diametercm²-mm12.000 – 360
Material – EfficiencyIEC 60335-2-69Polyester – L
Cleaning systemManual
Capacitylt.50 – 80
Dimensionscm43x50x102h
IndexUnitAF 30 MOBILE
VoltageV – Hz400 – 50
PowerkW2,2
Max waterliftmmH2O3000
Max air flowm³/h300
Suction inletmm50
Noise level (EN ISO 3744)dB(A)70
Butterfly discharge valvemm80
Hoppermm360 – 450
Filter TypeStar
Surface – Diametercm²-mm12.000 – 360
Material – EfficiencyIEC 60335-2-69Polyester – L
Cleaning systemManual
Capacitylt.50 – 80
Dimensionscm43x50x102h
